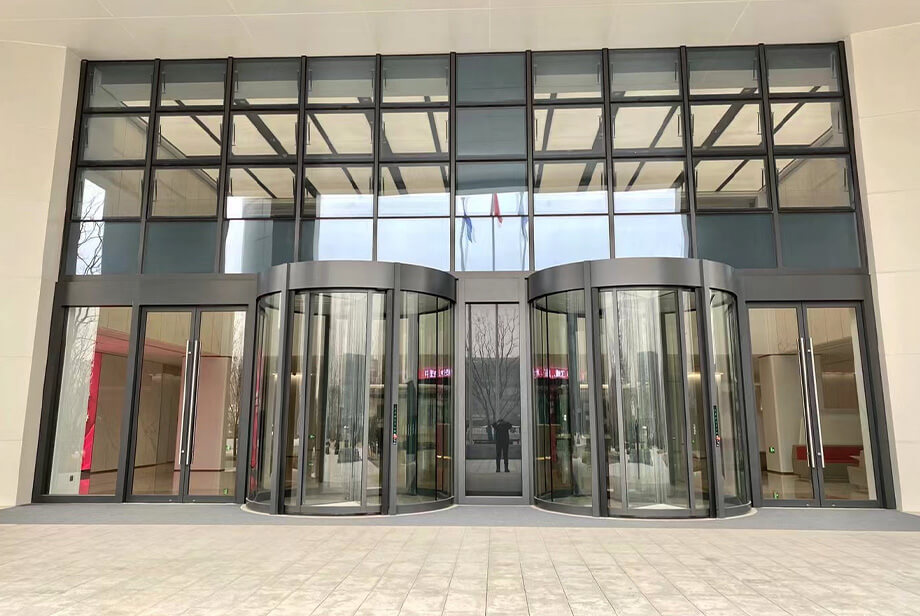

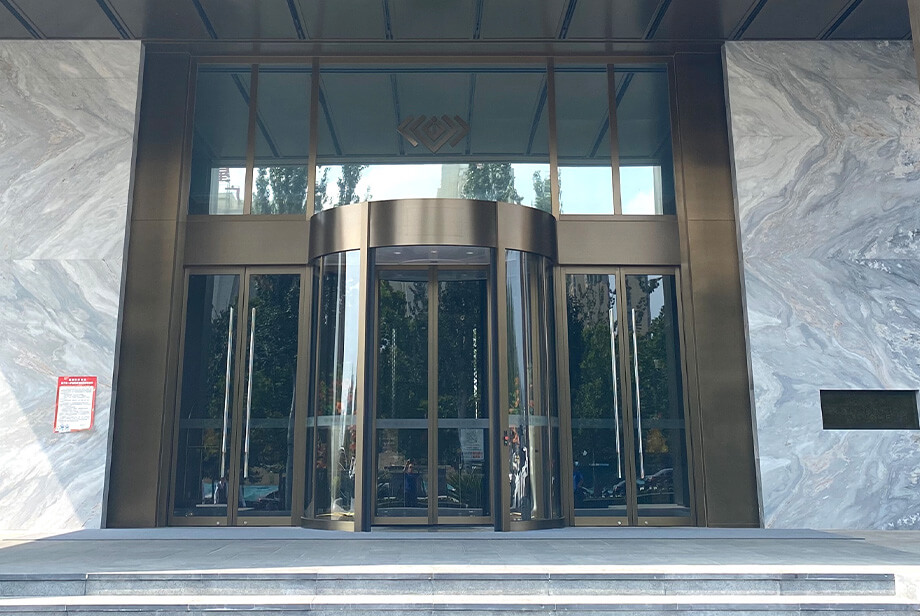

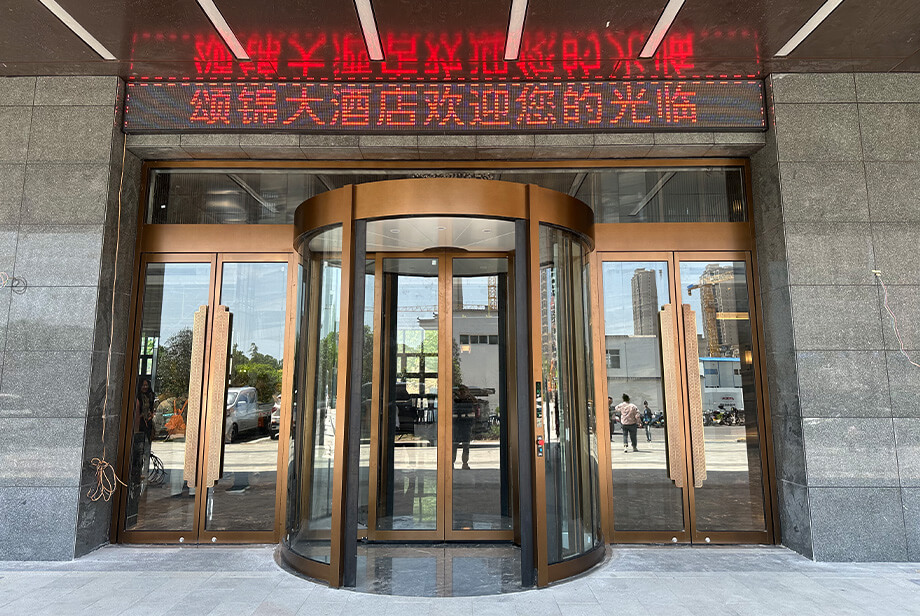

Two-sided automatic rotating doors + double-panel sliding doors + upper layer glass

Upper Translucent Hardware: Uses stainless steel pressure strips/clips to fix glass, with a simple structure and easy maintenance, some models feature decorative metal lines to enhance aesthetics.

INQUIRY NOW

[email protected]

Core Technical Parameters

Item Detailed Parameters

Two-wing Automatic Revolving Door – Diameter

3600mm – 4000mm (Customizable) – Passage Width: 1.6m – 2.0m – Rotational Speed: 0.5 – 1.0m/s (Adjustable) – Power Supply: AC 220V 50Hz – Power Consumption: 300W – 500W – Sensing Method: Microwave Radar/Infrared Sensing (Anti-pinch, Anti-collision)

Double-sided Spring Door – Single Door Width

800mm – 1200mm – Height: 2400mm – 3000mm – Opening Angle: 90° (Bidirectional) – Spring Hinge Load-bearing Capacity: 80kg – 120kg per door

Upper Translucent Part

Height: 300mm – 600mm (Customizable) – Light Transmission Rate: ≥85% (Tempered Glass) – Sound Insulation: ≥30dB (Double Glazed Glass)

Material Configuration

Frame Material

Mainly uses 201/304 stainless steel (available in brushed, mirror, and fluorocarbon spray finishes), with a thickness of 1.0mm – 1.5mm, rust-proof and corrosion-resistant, suitable for high-traffic commercial environments; some high-end models use aluminum alloy profiles (with surface anodization), which are lightweight and have a high appearance level.

Glass Material

– Revolving Door/Spring Door Panels: 8mm + 12A + 8mm Insulated Tempered Glass (Bulletproof Glass Optional), impact-resistant, heat-insulating, and sound-insulating; – Upper Translucent Part: Same as door panel glass or 6mm single-pane tempered glass, ensuring good lighting while reducing self-weight.

Internal Structure

Revolving door base uses cast iron counterweights to ensure stable operation; spring door panels can be filled with honeycomb aluminum or wood composite panels, balancing flatness and sound insulation.

Material Configuration

Frame Material

Glass Material

– Revolving Door/Spring Door Panels:

8mm + 12A + 8mm Insulated Tempered Glass (Bulletproof Glass Optional), impact-resistant, heat-insulating, and sound-insulating;

– Upper Translucent Part:

Same as door panel glass or 6mm single-pane tempered glass, ensuring good lighting while reducing self-weight.

Internal Structure

Hardware Features

Two-wing Revolving Door Hardware

Drive System

Uses DC brushless motor, silent (operating noise ≤ 55dB), long lifespan (≥ 100,000 hours), supports manual push rotation when power is off;

Bearings

Imported deep groove ball bearings, wear-resistant and low-friction, ensuring smooth rotation without stalling;

Safety Accessories

Standard anti-pinch rubber strips (automatically reverses when contact force ≤ 150N), emergency stop button, infrared anti-collision sensor, meeting GB 12955-2023 safety standards.

Double-sided Spring Door Hardware

Spring Hinge

Selects imported brands (such as Dorma, Geze, Panasonic), adjustable closing speed/positioning speed, can work normally in low-temperature environments (-20°C);

Door Lock

Equipped with fireproof floor lock or card-sensing electric lock, suitable for commercial security needs;

Upper Translucent Hardware

Upper Translucent Hardwar

Uses stainless steel pressure strips/clips to fix glass, with a simple structure and easy maintenance, some models feature decorative metal lines to enhance aesthetics.
